PA6 Nylon Rod

short description:



Nylon is the most important engineering plastics.The product is widely used in almost every fields and it’s the most widely used plastic of the five engineering plastics.

PA6 is a translucent or opaque milky crystalline polymer which is made from polymerized caprolactam monomer at high temperature.The material has the most superior comprehensive performance including mechanical strength, stiffness, toughness, mechanical shock resistance and wear resistance.All these properties combined with good electrical insulation and chemical resistance make PA6 general purpose grade material for manufacture of mechanical components and maintainable parts.




Product Detail

Product Tags

Description:

MC Nylon  means Monomer Casting Nylon, is a kind of engineering plastics used in comprehensive industries, has been applied almost every industrial field.The caprolactam monomer is first melted, and added catalyst, then poured it inside moulds at atmosphere pressure so as to shape in different castings, such as: rod, plate, tube. The molecule weight of MC Nylon can reach 70,000-100,000/mol, three times than PA6/PA66. Its mechanical properties are much higher than other nylon materials, such as: PA6/ PA66. MC Nylon plays a more and more important role in the material list recommended by our country.

Regular size

Color:Natural、White、Black、Green、Blue、Yellow、Rice Yellow、Gray and so on.

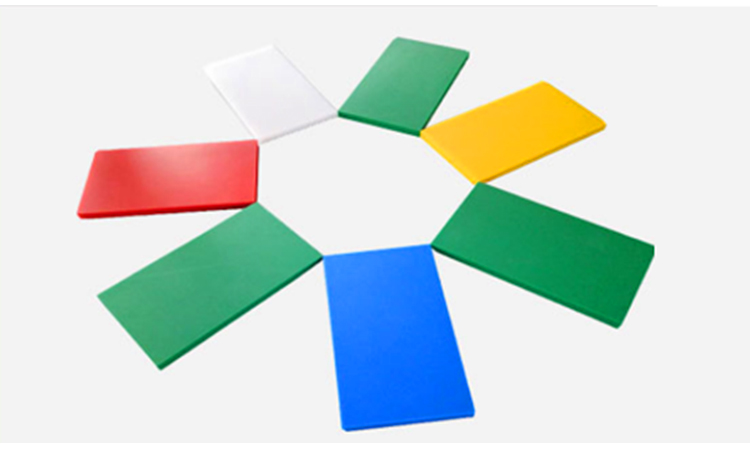

Sheet Size:1000*2000*(Thickness:1-300 mm)、1220*2440*(Thickness:1-300 mm)
                       1000*1000*(Thickness:1-300 mm)、1220*1220*(Thickness:1-300 mm)

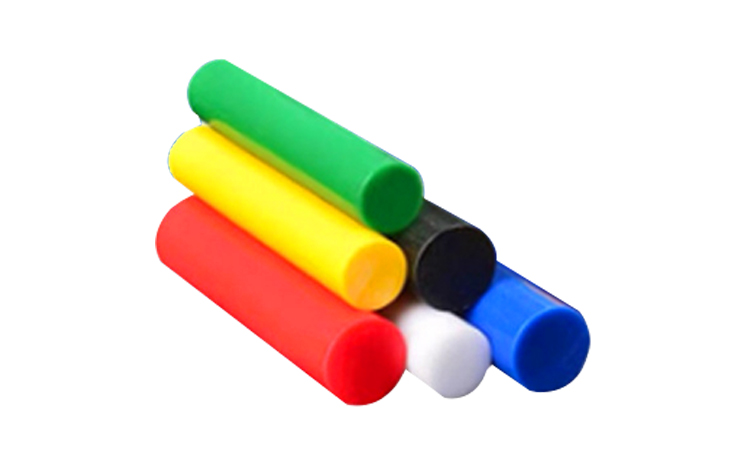

Rod Size: Φ10-Φ800*1000 mm

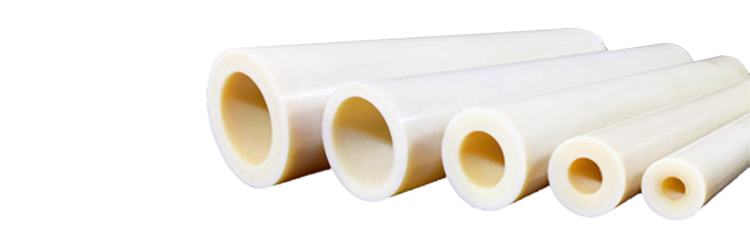

Tube Size: (OD)50-1800 *(ID)30-1600 * Length (500-1000 mm)

Technical Parameter:

/
Item No.
Unit
MC Nylon (Natural)
Oil Nylon+Carbon (Black)
Oil Nylon (Green)
MC901 (Blue)
MC Nylon+MSO2 (Light black)
1
Density
g/cm3
1.15
1.15
1.35
1.15
1.16
2
Water absorption (23℃ in air)
1.8-2.0
1.8-2.0
2
2.3
2.4
3
Tensile strength
MPa
89
75.3
70
81
78
4
Tensile strain at break
29
22.7
25
35
25
5
Compressive stress(at 2%nominal strain)
MPa
51
51
43
47
49
6
Charpy impact strength (unnotched)
KJ/m2
No break
No break
≥5
No BK
No break
7
Charpy impact strength (notched)
KJ/m2
≥5.7 ≥6.4
4
3.5
3.5
3.5
8
Tensile modulus of elasticity
MPa
3190
3130
3000
3200
3300
9
Ball indentation hardness
N2
164
150
145
160
160
10
Rockwell hardness
-
M88
M87
M82
M85
M84
This improved MC Nylon, has striking blue color, which is better than general PA6/PA66 in the performance of toughness, flexibility, fatigue-resistance and so on. It is the perfect material of gear, gear bar, transmission gear and so on.
MC Nylon added MSO2 can remain the impact-resistance and fatigue-resistance of casting nylon, as well as it can improve the loading capacity and wear-resistance. It has a wide application in making gear, bearing, planet gear, seal circle and so on.
Oil Nylon added carbon, has the very compact and crystal structure, which is better than the general casting nylon in the performance of high mechanical strength, wear-resistance, anti-aging, UV resistance and so on. It is suitable for making the bearing and other wear mechanical parts.

Application:

It can be used in food processing, medical equipment, military industry, mechanical parts and other fields.
