Product Description

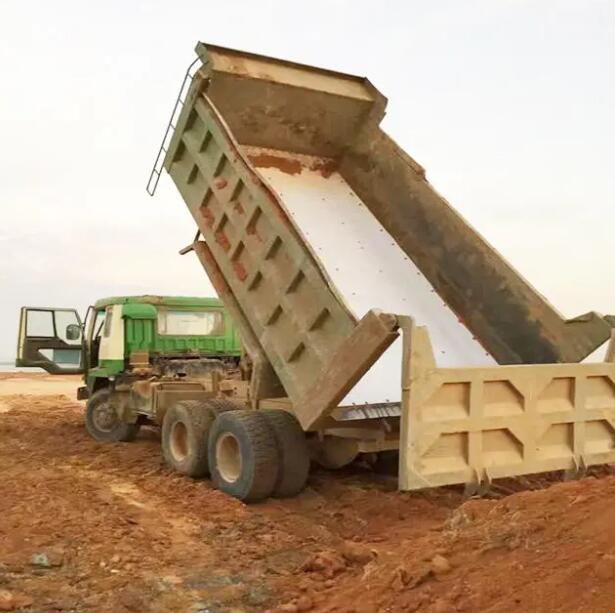

UHMWPE cheap dump truck bed liners solve the problem of arching blockage and bridge blockage caused by material agglomeration, bridging, or freezing during the storage and transportation of silos, hoppers, conveying chutes, and similar equipment in many power plants, coal mines, vehicle transportation, and other industries. It leads to a halt in production, wastes energy, and involves a series of safety issues in production.
Regular Sizes
2030*3030*（10-260）mm 1240*4040*（10-260）mm
1250*3080*（10-260） mm 1570*6150*（10-260）mm
1240*3720*（10-260） mm 1260*4920*（10-260）mm
1020*4080*（10-260）mm 1500*6200*（10-260）mm
Colors
White, Black, Blue, Green, Yellow and Others.
We will recommend the most reasonable installation method and the most cost-effective cutting method according to your use environment.
Parameters
| Test Item | Test Method | Result |
| Static Coefficient of Friction(ps) | ASTM D1894-14 | 0.148 |
| Kinetic Coefficient of Friction(px) | ASTM D1894-14 | 0.106 |
| Flexural Modulus | ASTM D790-17 | 747MPa |
| Izod Notched Impact Strength | ASTM D256-10C1 Method A | 840J/m P(partial break) |
| Shore Hardness | ASTM D2240-15E1 | D/64/1 |
| Tensile Modulus | ASTM D638-14 | 551 MPa |
| Tensile Strength | ASTM D638-14 | 29.4MPa |
| Elongation at Break | ASTM D638-14 | 3.45 |
Features
Applications
Ore Conveyor Chutes: In mining operations, ores are transported from the mining face to the concentrator or other processing sites through chutes. UHMWPE plastic chute liner sheets can withstand the intense impact and friction of ores. This reduces the wear and tear of chutes, significantly extending their service life. Moreover, their low - friction property enables ores to slide quickly and smoothly, improving transportation efficiency and reducing energy consumption.
Tailings Discharge Systems: Tailings usually contain various minerals and impurities, which are highly corrosive to chutes. The excellent chemical stability of UHMWPE plastic chute liner sheets allows them to resist the erosion of chemical substances in tailings. This ensures the normal operation of chutes and prevents tailings leakage, which could cause environmental pollution.
Underground Coal Mine Chutes: The working environment in underground coal mines is harsh. The transportation of coal requires an efficient and reliable chute system. UHMWPE plastic chute liner sheets can adapt to the wet and dusty environment underground. They reduce the adhesion and blockage of coal in the chutes, ensuring the continuous transportation of coal and improving the production efficiency of coal mines.
Coal Preparation Plant Chutes: During the coal preparation process, coals of different particle sizes and qualities need to be classified and transported. UHMWPE plastic chute liner sheets can be customized in different specifications and shapes according to various technological requirements. This meets the diverse chute needs of coal preparation plants and ensures the quality of coal during transportation.
Sand and Gravel Conveyor Chutes: In construction and building materials production, a large amount of sand and gravel needs to be transported. UHMWPE plastic chute liner sheets can effectively reduce the wear of chutes caused by sand and gravel, lowering maintenance costs. Their smooth surface also prevents the accumulation of sand and gravel in the chutes, ensuring smooth transportation and improving the efficiency of construction and building materials production.
Concrete Batching Plant Chutes: In concrete batching plants, various raw materials need to be transported to the mixer through chutes. UHMWPE plastic chute liner sheets can prevent raw materials from remaining in the chutes, ensuring the accurate mix ratio of concrete and improving the quality of concrete. Additionally, their good abrasion resistance and corrosion resistance can extend the service life of chutes.
Chemical Raw Material Conveyor Chutes: In chemical production, various corrosive chemical raw materials often need to be transported. UHMWPE plastic chute liner sheets have excellent chemical stability and can resist the erosion of many chemical substances. This ensures the safety and stability of chemical raw materials during transportation and prevents leakage accidents caused by chute corrosion.
Chemical Product Packaging Chutes: In the packaging process of chemical products, finished products need to be transported to packaging equipment through chutes. The low - friction property of UHMWPE plastic chute liner sheets enables chemical products to slide quickly and smoothly, improving packaging efficiency. At the same time, it can prevent products from being damaged during transportation.
Grain Conveyor Chutes: In grain processing and storage enterprises, grains need to be transported from one process to another. UHMWPE plastic chute liner sheets are non - toxic and odorless, meeting food hygiene standards. They will not contaminate grains. Their smooth surface can reduce the breakage rate of grains during transportation, ensuring the quality and taste of grains.
Food Additive Conveyor Chutes: Food additives are usually special and sensitive. UHMWPE plastic chute liner sheets can ensure the purity and stability of food additives during transportation, preventing them from reacting with the chutes and guaranteeing the quality and safety of food additives.
